HOW IT WORKS

The 575-Series provides a comprehensive Condition Based monitoring system solution for industrial equipment, utilizing multiple sensor add-ons, Machine Learning (ML) algorithms, and secure data transmission to detect degrading and abnormal conditions or faults, reducing unplanned downtime.

Banner-Work-flip

INDUSTRIES SERVED

Versatility to tailor the sensor add-ons to meet the specific equipment needs reducing unplanned downtime.

Served

575-Series Suite

Request for Information

Data Sheet

CTL-575: Control node
Each CTL-575 acts as a node collecting data from a series of diverse sensor(s) in real time.

• Encrypted communication via close loop sub-1 GHz Wireless or CAT 5/6e
• Digital Fault indication with ASI/PLC Connection

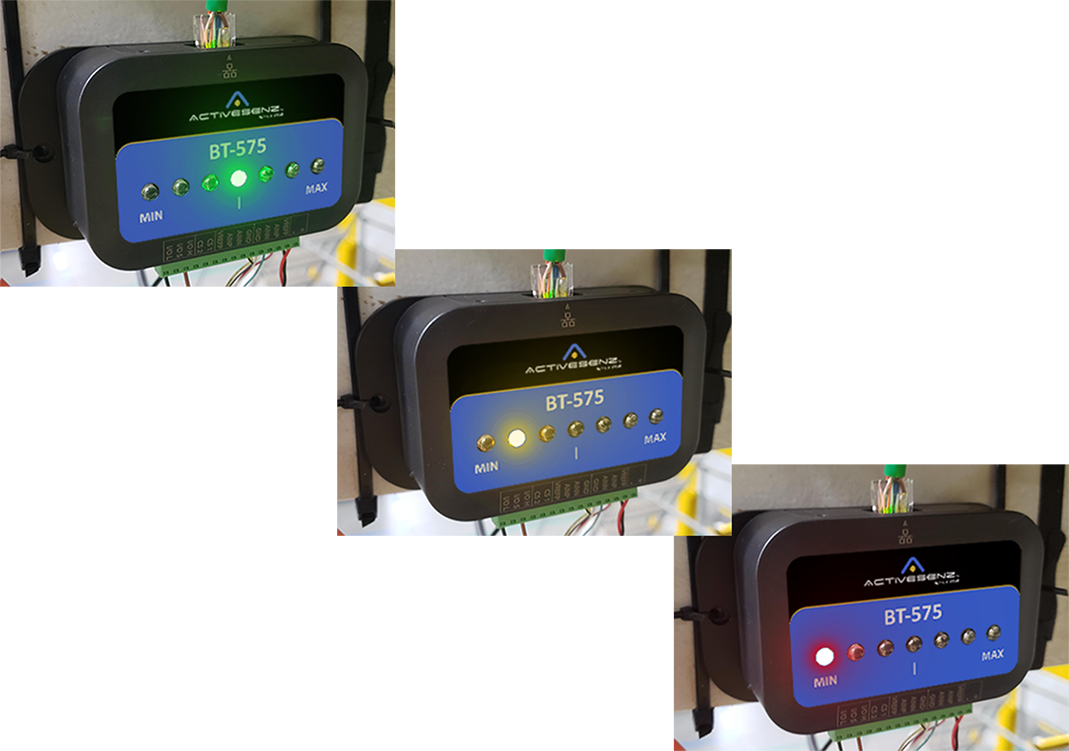

• Seven (7) indicating LEDs
• Machine learning algorithms
PSA-575: Analytic Software
The Predictive Software Analytics (PSA-575) serves as the interface dashboard between the sensor add-ons connected to the control node (CTL-575) and a host PC.

• Real time instantaneous data
• Provides maintenance window in predicted days
• Data extraction (.csv)

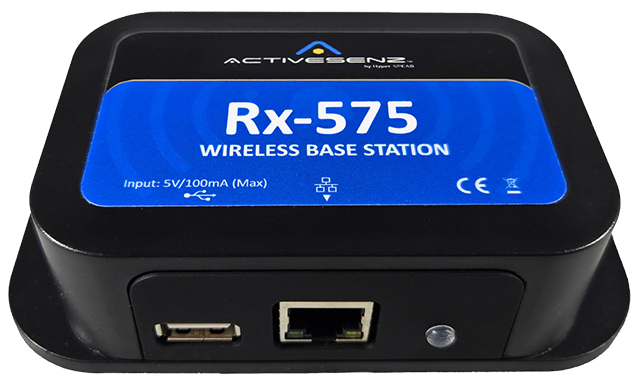

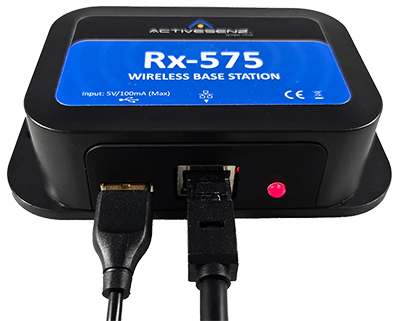

Rx-575: Wireless Base Station
Serves as the PC gateway for control nodes communicating wireless.

• Connection:
     •USB 2.0 or 3.X
• Wireless:
     •Encypted Long Range (Sub GHz)
• Material:
     •Flame-resitant ABS UL94V-0

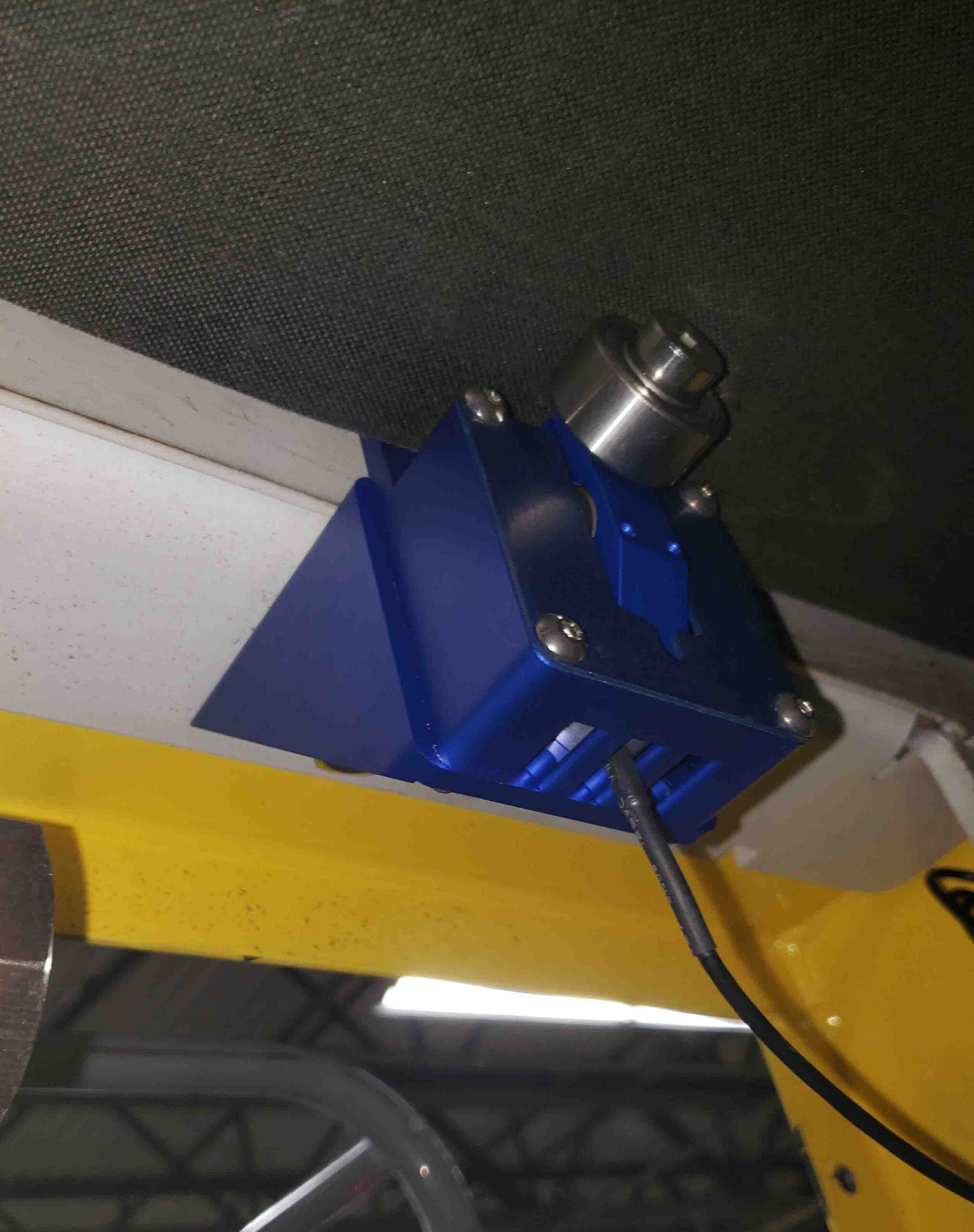

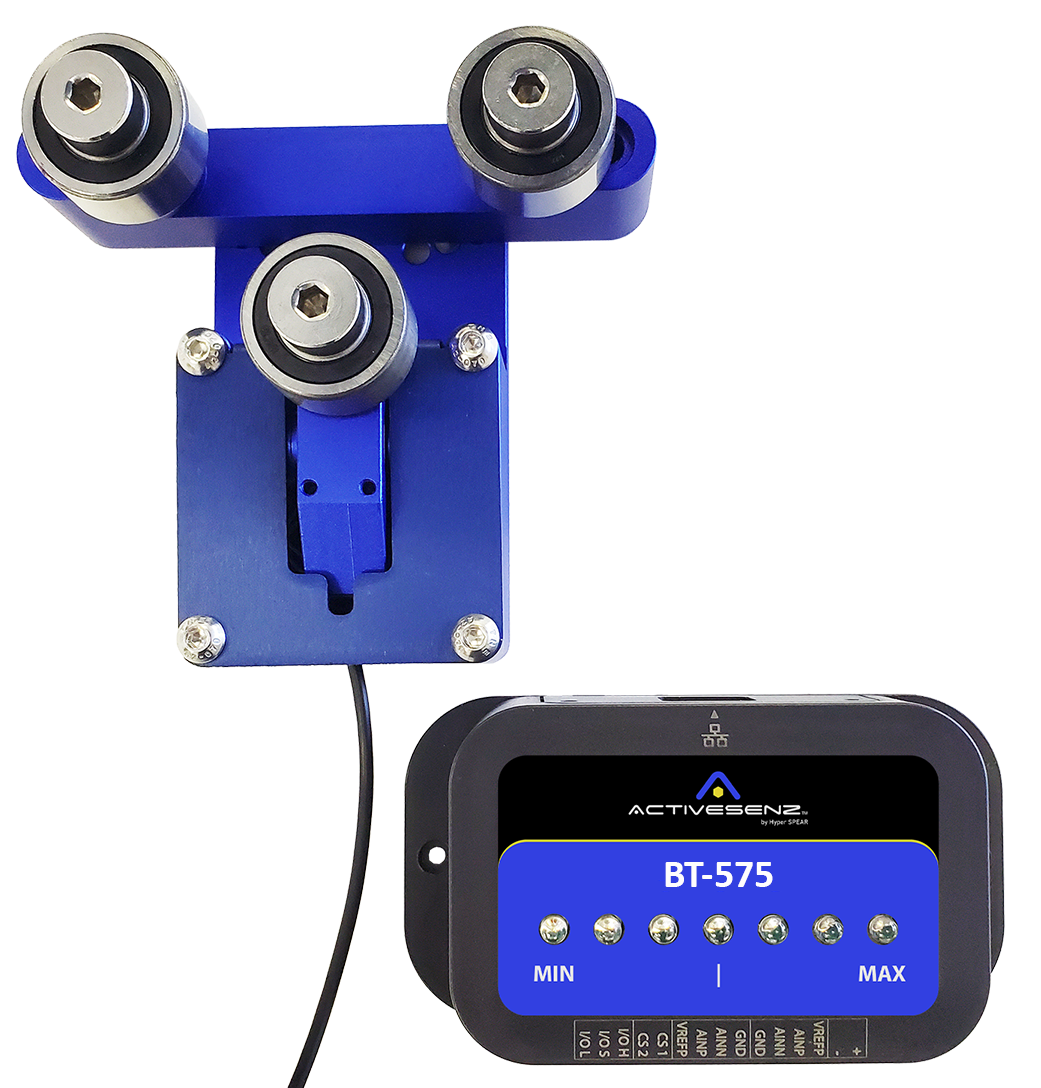

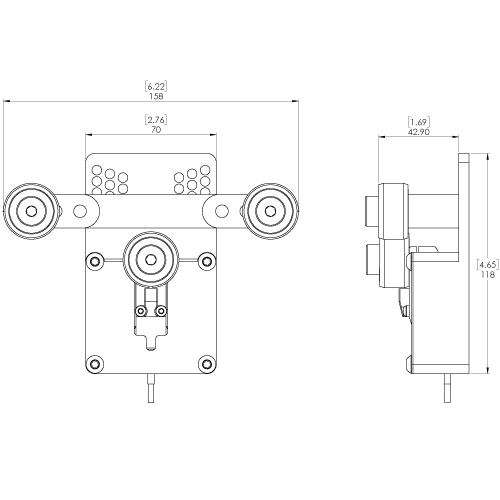

BT-575: Belt Monitoring
• Material:
     • Anodized Aircraft Aluminum
     • Corrosion Resistant Steel
• Belt Tension:
     • 10 to 1000kg [22 to 2205 lbs]
• Belt thickness:
     • 2 to 20 mm [0.08 to 0.78 in]
•Cable Length: 3m [10 ft]
• Frequency detection range:
     • 0 - 1000 Hz

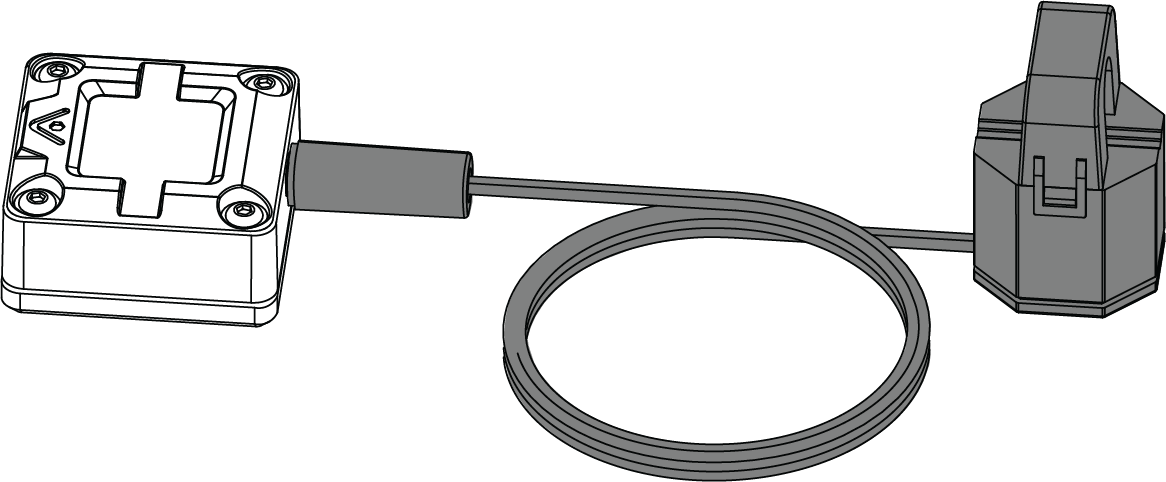

CS-575: Current Sensor
• Non-Invasive Split Core
• Max Curent: 75 Amp
•Cable Length: 2m [6.6 ft]
• Frequency Range: 50/60 Hz
• DC Resitance (DCR): 515 mOhm
Temp-575: Temperature Sensor
• Type K
• Accuracy: ±1.5°C or 0.4%|t|°C
•Cable Length: 2m [6.6 ft]
• Self-Adhesive Patch
• Patch size: 15 x 24 mm [0.6 x 1.0 in]
